Wiring a Widget to Dynamic Materials in Unreal Engine (Skill Check Gauge)

This is step five of the Radial Skill Check in Unreal Engine guide. The arc material can draw any slice from two numbers; this step is the thin Blueprint seam that feeds it those numbers from the component. It is the one place gameplay and visuals meet.

Two custom events, run in order

The widget’s event graph is small. An Event On Zone Values Updated (the C++ base calls this whenever the zone values change) runs a Sequence of two custom events: first build the materials, then push the current values in.

Splitting it this way means the dynamic material instances are created once and then only have their parameters updated, rather than rebuilt every change.

Init: create the dynamic instances

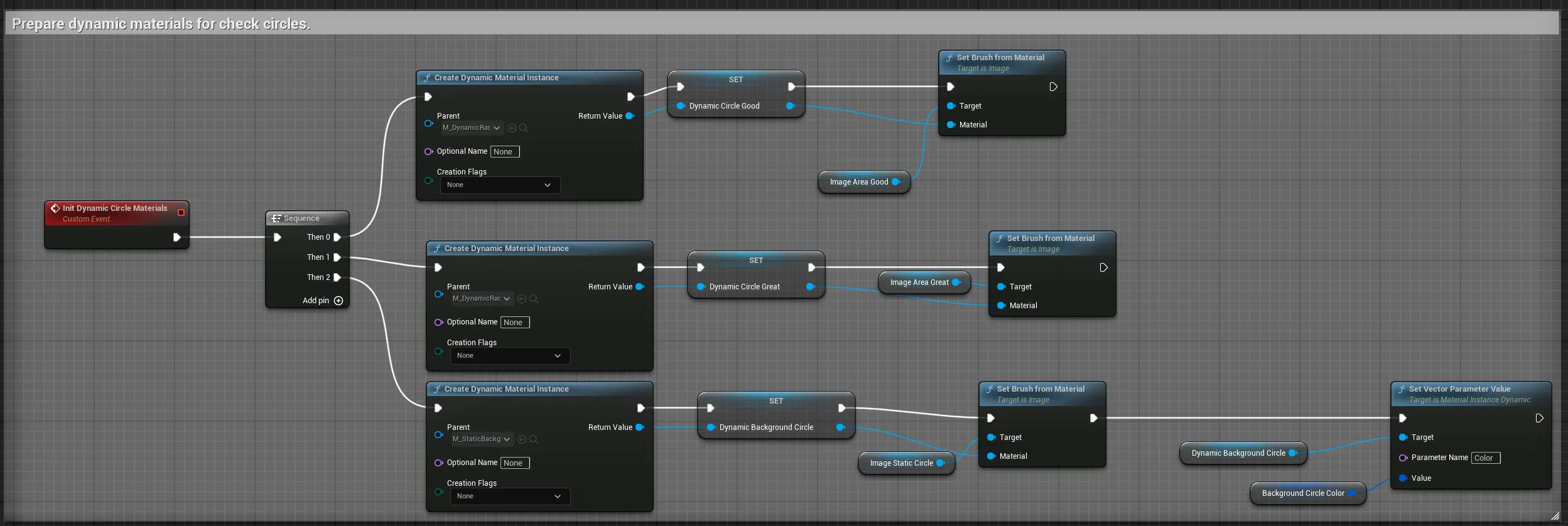

The first event, Init Dynamic Circle Materials, creates a Dynamic Material Instance for each of the three circle images and assigns it as that image’s brush:

• M_DynamicRadialSlice -> a MID stored as Dynamic Circle Good -> Set Brush from Material on Image_AreaGood;
• M_DynamicRadialSlice -> a MID stored as Dynamic Circle Great -> Set Brush from Material on Image_AreaGreat;
• M_StaticBackgroundCircle -> a MID stored as Dynamic Background Circle -> Set Brush from Material on Image_StaticCircle, then a Set Vector Parameter Value to tint it with the background color.

The two arc instances share the same parent material; they differ only in the parameters set next. A plain material asset cannot be changed at runtime, which is the whole reason for making instances here.

Set params: push the numbers in

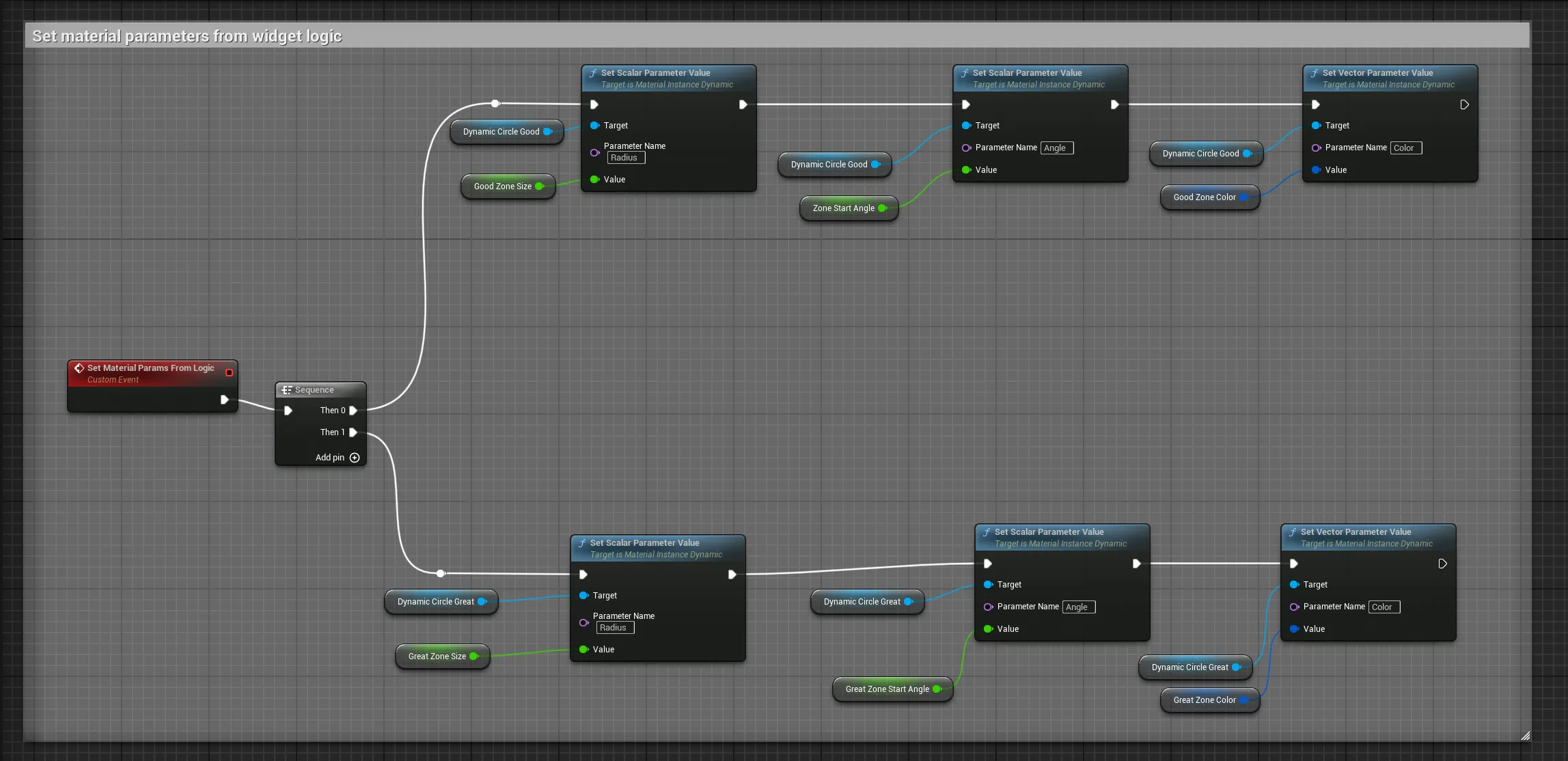

The second event, Set Material Params From Logic, is where the component’s values land. For each arc MID it writes three parameters:

• Set Scalar Parameter Value Radius = the zone size (good or great), the arc length;
• Set Scalar Parameter Value Angle = the zone start angle (good start, or the great zone’s own start);
• Set Vector Parameter Value Color = that zone’s color.

Those values are exposed by the C++ base class. The component calls SetGoodZoneSize, SetGreatZoneSize, SetZoneStartAngle, and SetGreatZoneStartAngle (which wrap negatives back into 0-1), then triggers OnZoneValuesUpdated, so by the time this graph runs the widget already holds the correct, freshly randomized numbers. You are just copying them into the material.

Why the seam is so thin

This is the entire contract between logic and visuals: three parameters per arc, set on one event. The component does not know the material exists; the material does not know the gameplay exists. That is what lets you restyle the gauge freely. As long as your widget keeps the bound Image_Gauge and SizeBox_Container the base class expects, and writes the zone values into something, you can rebuild the dial however you like, swap the arc art, add a glow, draw it with a different technique entirely.

With the gauge drawn and driven, the remaining steps are pure gameplay: scoring the stop and firing events, and triggering checks.
