Drawing a Radial Arc with a Material in Unreal Engine

This is step four of the Radial Skill Check in Unreal Engine guide, and the part the marketing walkthrough skips. The C++ never draws anything: the colored good and great arcs are a material. Get this material right and the widget wiring is almost trivial.

The goal: an arc you can resize and aim

Each zone is a slice of a ring: it starts at some angle and spans some arc length, both normalized 0-1. The material, M_DynamicRadialSlice, takes exactly two scalar parameters plus a color:

• Angle: where the arc begins (0-1 around the dial);
• Radius: the arc length, that is, how much of the ring the slice covers (the zone size). The name is a historical quirk; think “arc length,” not “circle radius.”
• Color: the slice’s color.

Those map one to one onto the component’s values: Angle is the zone start, Radius is the zone size. Drawing the great zone is the same material with smaller numbers.

Step 1: a thick full circle

The base shape is a crisp ring. The trick is two RadialGradientExponential nodes sharing a high Density (1000), which turns the soft gradient into a hard-edged filled disc, at two radii a small step apart:

• one disc at radius R (for example 0.4);
• one disc at radius R + 0.1 (an Add node, the thickness).

Subtract the smaller disc from the larger and what is left is the area between them: a thin, sharp ring. Because the density is so high, the edges are clean rather than feathered. That ring is the “thick full circle” the graph comment calls out; it is the donut every slice is carved from.

Step 2: cut the arc

A full ring is not a zone yet. A material function, Radial cut, takes three inputs and returns a mask of just the wedge you want:

• Angle: the start angle, wired from the Angle parameter;
• ArcLength: how far the wedge spans, wired from the Radius parameter (the zone size);
• UV: the texture coordinates (TexCoord[0]).

It compares each pixel’s angle around the center against [Angle, Angle + ArcLength] and keeps only what falls inside. That is your wedge mask.

Step 3: ring times wedge

Multiply the ring from step 1 by the wedge from step 2 and you get the intersection: the ring, but only across the slice. That product goes to Opacity Mask, so the image is opaque exactly on the arc and transparent everywhere else. The Color parameter feeds the final color, so the same material draws a soft green good zone or a hot orange great zone purely by parameter.

Two instances of this one material, with different Angle, Radius, and Color, draw both zones.

The background ring

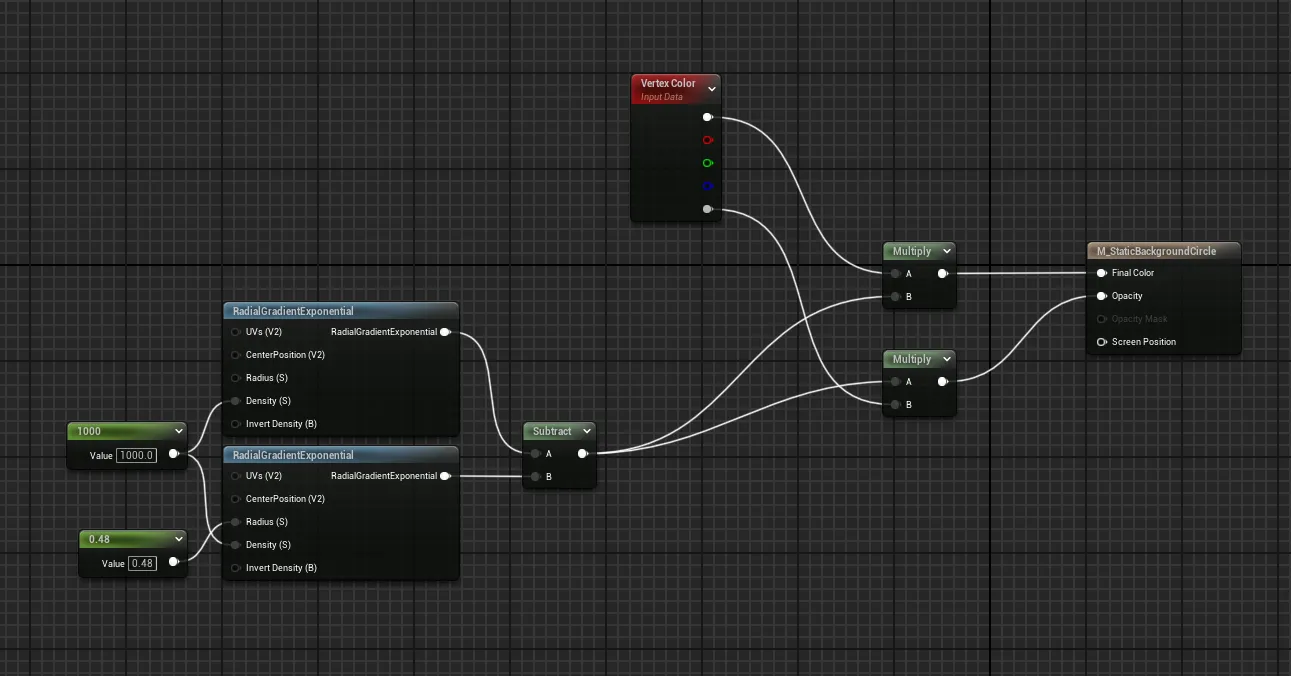

Behind the two arcs sits the full circle so the dial always looks complete. M_StaticBackgroundCircle reuses the same two-gradient ring (a RadialGradientExponential at radius 0.48 subtracted to leave a ring) but skips the radial cut: it is the whole circle, not a slice. It is tinted by its own color and never resizes, which is why it lives on its own Image_StaticCircle and is created once.

Why this design

Pushing the shape into a material means the gauge is vector-crisp at any size (no fixed texture to pixelate), and resizing or repositioning a zone is just setting a float. There are no per-frame redraws of geometry, no render targets, just two scalar parameters the widget updates when the zone values change. That update is the next step: wiring the widget to the materials.
