Building Slate UI and Project Settings for an Unreal Plugin

A plugin panel is two problems: the widget tree you see, and the options that configure it. Unreal answers both with declarative systems that are quick once you know the idioms and opaque until you do. This article covers both, using the AI Node Code Editor (Quick Code Editor on FAB) as the example. It is one of six self-contained articles in Building an AI Code Editor Inside Unreal Engine.

Slate composition, the short version

Slate is a declarative C++ UI framework. You describe a tree with nested SNew calls and slot operators, and the framework lays it out. The panel below is a vertical box whose top row is a horizontal splitter dividing the code editor from the AI chat:

TSharedRef<SDockTab> NewTab = SNew(SDockTab)
    .TabRole(ETabRole::NomadTab)
    [
        SNew(SVerticalBox)
        + SVerticalBox::Slot().FillHeight(1.0f).Padding(4)
        [
            SNew(SSplitter).Orientation(Orient_Horizontal)
            + SSplitter::Slot().Value(1.0f)
            [
                /* code editor column */
            ]
        ]
    ];

A few idioms carry most of the weight:

• SNew vs SAssignNew. SNew(SButton) builds a button you never touch again. SAssignNew(MyButton, SButton) builds the same button and stores it in MyButton so you can call into it later. Only reach for SAssignNew on widgets you actually talk to after construction; everything else is SNew.
• Slots size content. .AutoWidth() / .AutoHeight() size to the child; .FillWidth(x) / .FillHeight(x) take a proportional share of the remaining space.
• SSplitter gives the user a draggable divider between panes; SWidgetSwitcher shows one child at a time by index, which is how the declaration (.h) and implementation (.cpp) tabs share one region.

Reactive styling with _Lambda attributes

The most useful trick for a tool UI is the _Lambda attribute. Instead of setting a color once, you bind a function that Slate re-evaluates every frame, so the UI reflects state with no manual invalidation:

SNew(SBorder)
    .BorderBackgroundColor_Lambda([this]()
    {
        return bIsDeclarationTabActive
            ? GetDefault<UQCE_EditorSettings>()->ActiveTabBackgroundColor
            : GetDefault<UQCE_EditorSettings>()->InactiveTabBackgroundColor;
    })

The active-tab highlight, the little “modified” dot on an edited file, and the collapse of the AI pane are all just lambdas reading a bool or a setting. There is no “update the color” call anywhere, because the binding is the update.

Two ways to extend a Slate widget

There are two distinct ways to build a custom widget, and a good codebase uses both:

1. Subclass a concrete widget to change its behavior. The code box derives from SMultiLineEditableTextBox, re-exposes the base’s full SLATE_BEGIN_ARGS, forwards them to the base Construct, and then adds its own key handling, syntax layout and completion on top.
2. Compose with SCompoundWidget to assemble a widget out of others. A wrapper around the code box adds a line-number gutter and a shared scroll box, assigning the assembled tree to its single ChildSlot.

The pattern that ties it together is keeping state in a UObject and the view in Slate. A UMainEditorContainer (a plain UObject, not a widget) owns the lifetime, the delegate bindings and handles to the named widgets, while the widget tree itself is anonymous Slate built in one method. The UObject is GC-managed and survives; the Slate is rebuilt cheaply. The bridge between them is the set of SAssignNew handles.

Exposing options in Project Settings

Now the configuration. A settings page is, at heart, a UObject whose properties Unreal renders into a details panel. The class is marked config so values persist to an ini:

UCLASS(config = EditorPerProjectUserSettings)
class UQCE_EditorSettings : public UObject
{
    GENERATED_BODY()
public:
    UPROPERTY(Config, EditAnywhere, Category = "AI Settings|Common|Claude",
        meta = (DisplayName = "Claude API Key"))
    FString ClaudeApiKey;

    UPROPERTY(Config, EditAnywhere, Category = "AI Settings|Common|Claude",
        meta = (DisplayName = "Claude Model"))
    FString ModelVersion = TEXT("claude-sonnet-4-5-20250929");

    UPROPERTY(Config, EditAnywhere, Category = "AI Settings|Chat",
        meta = (ClampMin = 1, ClampMax = 50,
                ToolTip = "How many recent messages to send as context."))
    int32 MaxHistoryMessages = 5;

    UPROPERTY(Config, EditAnywhere, Category = "Editor Settings|Font",
        meta = (ClampMin = 8, ClampMax = 72))
    int32 FontSize = 10;
};

Three specifiers do all the work:

• Config ties the property to an ini file, so edits persist between sessions.
• EditAnywhere makes it appear in the details panel.
• Category = "A|B|C" builds the nested heading tree. The pipe is a separator, so "AI Settings|Common|Claude" nests three levels deep. This is how the whole page organizes itself into AI Settings, Editor Settings, Keyboard Shortcuts and Editor Colors with no layout code.

meta then shapes each control: DisplayName relabels it, ClampMin/ClampMax bound a number, MultiLine = true turns an FString into a text area (used for the system instructions), and ToolTip adds hover help.

Registering the page

A UDeveloperSettings subclass auto-registers, which is the shortest path. This plugin instead uses a plain config UObject and registers it by hand, which buys explicit control of the category path and a custom reset handler:

void FQuickCodeEditorModule::RegisterQceSettings()
{
    if (ISettingsModule* Settings = FModuleManager::GetModulePtr<ISettingsModule>("Settings"))
    {
        TSharedPtr<ISettingsSection> Section = Settings->RegisterSettings(
            "Project", "Plugins", "Code Editor",
            LOCTEXT("Name", "Code Editor"),
            LOCTEXT("Desc", "Configure the Code Editor plugin"),
            GetMutableDefault<UQCE_EditorSettings>());

        Section->OnResetDefaults().BindUObject(
            GetMutableDefault<UQCE_EditorSettings>(), &UQCE_EditorSettings::ResetToDefaults);
    }
}

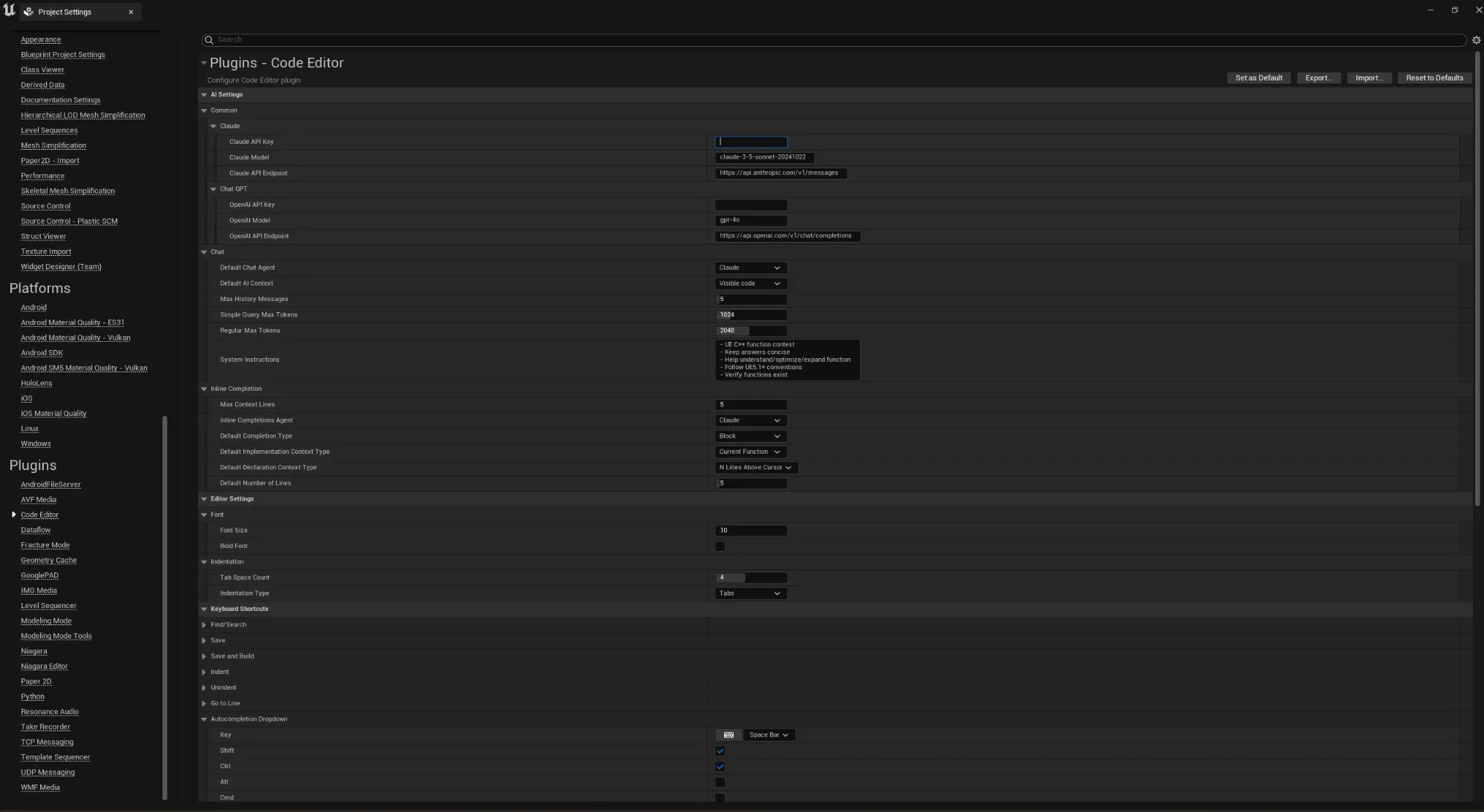

The "Project" / "Plugins" / "Code Editor" triple is the page’s location: Project Settings, Plugins section, Code Editor entry. The object being edited is the class default object, GetMutableDefault<UQCE_EditorSettings>(). Remember the matching UnregisterSettings(...) in ShutdownModule.

Reading and reacting to settings

Code reads settings on demand through the CDO, never caching, so a change is visible on the next read:

const UQCE_EditorSettings* Settings = GetDefault<UQCE_EditorSettings>();
const FString Key = Settings->ClaudeApiKey;

For changes that need to do something immediately (recolor the editor, rebind a shortcut), override PostEditChangeProperty and broadcast a delegate:

void UQCE_EditorSettings::PostEditChangeProperty(FPropertyChangedEvent& Event)
{
    Super::PostEditChangeProperty(Event);
    const FName Name = Event.GetPropertyName();

    if (Name == GET_MEMBER_NAME_CHECKED(UQCE_EditorSettings, ColorPreset) && ColorPreset != EQCEColorPreset::Custom)
        ApplyColorPreset(ColorPreset);

    OnSyntaxSettingsUpdated.ExecuteIfBound();   // marshaller listens, recolors live
}

Whatever bound to OnSyntaxSettingsUpdated (the syntax highlighter, for example) refreshes the moment you change a color in Project Settings. That observer channel is what makes the settings feel live instead of requiring an editor restart.

What to take away

• Slate is declarative: build with SNew, keep a handle with SAssignNew, divide space with SSplitter / SWidgetSwitcher, and make style reactive with _Lambda attributes.
• Extend Slate two ways: subclass a concrete widget to add behavior, or compose with SCompoundWidget. Keep durable state in a UObject and the tree in Slate.
• A Project Settings page is a UCLASS(config=...) UObject; UPROPERTY(Config, EditAnywhere, Category="A|B|C") fields become a nested page. Register with ISettingsModule (or derive from UDeveloperSettings for auto-registration).
• Read settings via GetDefault<T>() and broadcast from PostEditChangeProperty for live updates.

This panel is the surface every other technique plugs into: the AI assistant, code completion, syntax highlighting, and the C++ parsing behind Generate Definition. The whole tour is Building an AI Code Editor Inside Unreal Engine, and the finished plugin is AI Node Code Editor on FAB.
