Adding Toolbar Buttons, Tabs and Menus to the Unreal Editor

Most of what makes a tool feel native in Unreal is not the panel itself, it is the way it plugs into the editor: a button on the toolbar, a tab that docks where you expect, a keyboard shortcut, a right-click menu. None of that is automatic. This article is a self-contained tour of the editor-extension surface, using a real plugin (the AI Node Code Editor, shipped on FAB as Quick Code Editor) as the worked example. It is one of six articles in Building an AI Code Editor Inside Unreal Engine, each covering one technique you can lift on its own.

The module is the entry point

Everything starts in the module’s StartupModule. An editor extension is an editor-only module, which the .uplugin declares explicitly:

"Modules": [{
    "Name": "QuickCodeEditor",
    "Type": "Editor",
    "LoadingPhase": "PostEngineInit",
    "PlatformAllowList": ["Win64"]
}]

Type: "Editor" keeps the module out of cooked, shipping builds. The non-obvious part is LoadingPhase: "PostEngineInit": the Blueprint editor module (Kismet) and the settings system must already exist when your StartupModule runs, and PostEngineInit is the phase that guarantees it. Get the phase wrong and a LoadModuleChecked("Kismet") call will assert on launch.

From there StartupModule is just a registration list:

void FQuickCodeEditorModule::StartupModule()
{
    RegisterQceToggleButton();   // toolbar button + its command
    RegisterQceSettings();       // Project Settings page
    RegisterQceTabSpawner();     // the docked tab
    FQCECommands::Register();    // right-click menu commands
    // ...
}

ShutdownModule mirrors it: unregister settings, unregister commands, tear down the tab. Anything you add to the editor you are responsible for removing, or you leak it across plugin reloads.

Keyboard commands: the TCommands pattern

A command in Unreal is an FUICommandInfo: a label, a tooltip, an action type, and a default chord. You declare a set of them by subclassing the TCommands template, which is the canonical pattern every engine tool uses.

class FCodeEditorCommands : public TCommands<FCodeEditorCommands>
{
public:
    FCodeEditorCommands()
        : TCommands<FCodeEditorCommands>(
            TEXT("CodeEditor"),                                   // context name
            NSLOCTEXT("Contexts", "CodeEditor", "Code Editor"),   // context label
            NAME_None,                                            // parent context
            FAppStyle::GetAppStyleSetName())                      // icon style set
    {}

    virtual void RegisterCommands() override;
    TSharedPtr<FUICommandInfo> CodeEditor_Open;
};

The commands themselves are created in RegisterCommands with the UI_COMMAND macro, which wires up the localized text and the default keyboard chord in one line:

void FCodeEditorCommands::RegisterCommands()
{
    UI_COMMAND(CodeEditor_Open, "Toggle Code Editor",
        "Show or hide the quick code editor.",
        EUserInterfaceActionType::Button,
        FInputChord(EModifierKey::Alt, EKeys::C));   // default Alt+C
}

One wrinkle worth knowing: UI_COMMAND can trip up compiler optimization in some toolchains, so it is common to wrap RegisterCommands in UE_DISABLE_OPTIMIZATION / UE_ENABLE_OPTIMIZATION. If you see odd build errors only in shipping configs, that is the first thing to check.

A command does nothing until it is bound to an action through an FUICommandList:

CommandList = MakeShareable(new FUICommandList);
CommandList->MapAction(
    FCodeEditorCommands::Get().CodeEditor_Open,
    FExecuteAction::CreateRaw(this, &FQuickCodeEditorModule::TryInvokeQceTab),
    FCanExecuteAction());

Rebindable shortcuts are a different mechanism

The UI_COMMAND chord is baked in at registration time. If you want shortcuts the user can change at runtime and have them persist, the command list is the wrong tool. The pattern instead is to store an FInputChord on a config settings object and compare it by hand inside your widget’s OnKeyDown:

FReply SCodeBox::OnKeyDown(const FGeometry& Geometry, const FKeyEvent& Event)
{
    const UQCE_EditorSettings* Settings = GetDefault<UQCE_EditorSettings>();
    const FInputChord Chord(Event.GetKey(), EModifierKey::FromBools(
        Event.IsControlDown(), Event.IsAltDown(), Event.IsShiftDown(), Event.IsCommandDown()));

    if (Settings->SaveKeybinding == Chord) { OnSaveRequested.ExecuteIfBound(); return FReply::Handled(); }
    if (Settings->FindKeybinding == Chord) { OnSearchRequested.ExecuteIfBound(); return FReply::Handled(); }
    // Indent, Unindent, Go to Line, completion ...
    return FReply::Unhandled();
}

That is exactly why the plugin’s settings page exposes editable shortcuts for Find, Save, Save and Build, Indent, Go to Line and so on: each one is a stored chord, not a fixed UI_COMMAND. The two systems coexist happily, the toolbar toggle uses the classic command, the in-editor actions use stored chords.

A docked tab inside the Blueprint editor

The interesting decision here is where the panel lives. A floating, global window is a nomad tab registered with FGlobalTabmanager::RegisterNomadTabSpawner. But a panel that belongs next to a specific Blueprint graph should be a per-editor workflow tab instead, and that is registered through the Blueprint editor module’s delegates, not the global tab manager.

FBlueprintEditorModule& BPModule =
    FModuleManager::LoadModuleChecked<FBlueprintEditorModule>("Kismet");

BPModule.OnRegisterTabsForEditor().AddRaw(this, &FQuickCodeEditorModule::AddTabFactory);
BPModule.OnRegisterLayoutExtensions().AddRaw(this, &FQuickCodeEditorModule::DockTabToBottom);

OnRegisterTabsForEditor lets you add a tab factory to each Blueprint editor as it opens. The factory is a FWorkflowTabFactory subclass that describes the tab and builds its contents:

FQCESummoner::FQCESummoner(TSharedPtr<FAssetEditorToolkit> HostingApp)
    : FWorkflowTabFactory(QuickCodeEditorID, HostingApp)
{
    TabLabel = LOCTEXT("TabTitle", "Code Editor");
    TabIcon  = FSlateIcon(FAppStyle::GetAppStyleSetName(), "LevelEditor.Tabs.Details");
    bIsSingleton = true;
    ViewMenuDescription = LOCTEXT("MenuTitle", "Code Editor");   // appears in Window menu
    ViewMenuTooltip     = LOCTEXT("MenuTip", "Shows the Code Editor");
}

OnRegisterLayoutExtensions is how you place the tab in the default layout without fighting the host editor. You extend relative to a tab that already exists:

void FQuickCodeEditorModule::DockTabToBottom(FLayoutExtender& Extender)
{
    Extender.ExtendLayout(
        FBlueprintEditorTabs::BookmarksID,        // an existing built-in tab
        ELayoutExtensionPosition::After,
        FTabManager::FTab(QuickCodeEditorID, ETabState::ClosedTab));
}

That single call is the difference between a tab that snaps into a sensible dock and one that floats in the middle of the screen the first time it opens.

Toggling the tab

The toolbar button is bound to a toggle that finds the active Blueprint editor, grabs that editor’s tab manager, and either closes the tab if it is open or invokes it if it is not:

TSharedPtr<FTabManager> TabManager = BPEditor->GetTabManager();
if (TSharedPtr<SDockTab> Existing = TabManager->FindExistingLiveTab(QuickCodeEditorID))
    Existing->RequestCloseTab();          // it was open: real toggle
else
    TabManager->TryInvokeTab(QuickCodeEditorID);

One genuinely awkward detail: Unreal has no direct “give me the active asset editor” API. You find it by walking UAssetEditorSubsystem::GetAllEditedAssets(), filtering to Blueprints, and picking the editor with the most recent GetLastActivationTime(). It is not pretty, but it is the reliable way.

A toolbar button with FExtender

The button uses the classic extender API rather than the newer UToolMenus. You build an FExtender, add a toolbar extension hooked onto a named section of the host toolbar, then register the extender with the Blueprint editor module’s extensibility manager:

ToolbarExtender->AddToolBarExtension(
    "Settings", EExtensionHook::After, CommandList,
    FToolBarExtensionDelegate::CreateRaw(this, &FQuickCodeEditorModule::AddButton));

BPModule.GetMenuExtensibilityManager()->AddExtender(ToolbarExtender);

The delegate does the actual AddToolBarButton, reusing the command for its label, tooltip and shortcut:

void FQuickCodeEditorModule::AddButton(FToolBarBuilder& Builder)
{
    Builder.AddToolBarButton(
        FCodeEditorCommands::Get().CodeEditor_Open, NAME_None,
        LOCTEXT("Toggle", "Toggle Code Editor"),
        LOCTEXT("ToggleTip", "Toggle the quick code editor."),
        FSlateIcon(FAppStyle::GetAppStyleSetName(), "Icons.TextEditor"));
}

That "Settings" string is the name of an existing section in the Blueprint editor’s toolbar; EExtensionHook::After drops your button right after it. This is the button you see in the editor toolbar next to Class Defaults and Simulation.

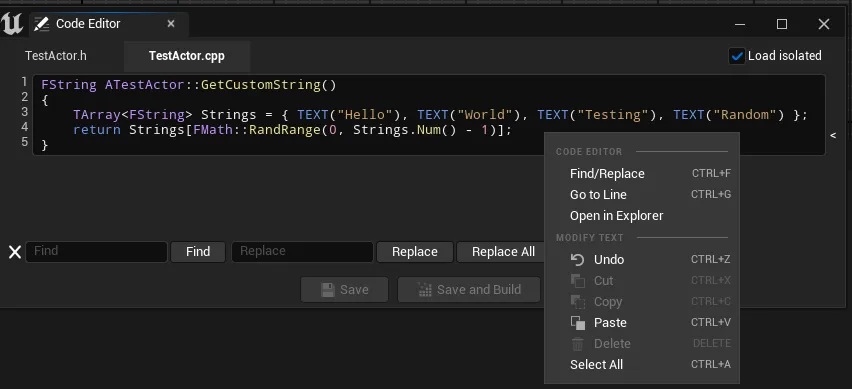

A right-click context menu with FMenuBuilder

The in-editor right-click menu is added by extending the Slate text box’s built-in context menu through a FMenuExtensionDelegate. The handler is the textbook FMenuBuilder recipe: push the command list so entries resolve their bindings, open a named section, add entries, close it, pop the list.

void AddEditorMenuEntries(FMenuBuilder& MenuBuilder)
{
    MenuBuilder.PushCommandList(CommandList.ToSharedRef());
    MenuBuilder.BeginSection("Code Editor", LOCTEXT("Heading", "Code Editor"));
    {
        // context-sensitive: only when the cursor is on a declaration
        if (HasDeclarationAtCursor())
            MenuBuilder.AddMenuEntry(FQCECommands::Get().GenerateDefinition);

        MenuBuilder.AddMenuEntry(FQCECommands::Get().FindAndReplace);
        MenuBuilder.AddMenuEntry(FQCECommands::Get().GoToLine);
        MenuBuilder.AddMenuEntry(FQCECommands::Get().OpenInExplorer);
    }
    MenuBuilder.EndSection();
    MenuBuilder.PopCommandList();
}

Two things worth copying from this. First, PushCommandList is mandatory: without it the entries you add by command have no bindings and do nothing. Second, context-sensitive entries: “Generate Definition” only appears when the cursor is actually on a function declaration, which is just an if around the AddMenuEntry. That conditional is what keeps a context menu feeling smart instead of cluttered.

What to take away

• An editor extension is an editor-only module loaded PostEngineInit; everything is registered in StartupModule and unwound in ShutdownModule.
• Commands are a TCommands subclass with UI_COMMAND; bind them through an FUICommandList. For shortcuts users can rebind, store FInputChord in settings and match them in OnKeyDown instead.
• A panel that belongs to a host editor is a FWorkflowTabFactory, registered via the host module’s delegates and placed with FLayoutExtender, not a global nomad tab.
• Toolbar buttons and context menus come from FExtender + FToolBarBuilder and FMenuBuilder; this classic path needs no UToolMenus dependency.

To see these pieces assembled into a working tool (the panel they summon, the AI assistant inside it, the C++ it reads and writes), the rest of Building an AI Code Editor Inside Unreal Engine walks through each one. The finished plugin is AI Node Code Editor on FAB, with full documentation.
