Fog of War Master Material in Unreal Engine: Mask, Occluders, and Cliff Shadows

This is step four of the Top-Down Fog of War in Unreal Engine guide, and the heart of it. The Fog Manager pushes live data into a dynamic instance of M_Main_Fog_Volume; this step is what that material does with it: darken the scene, build one mask, and carve shadow back out of it.

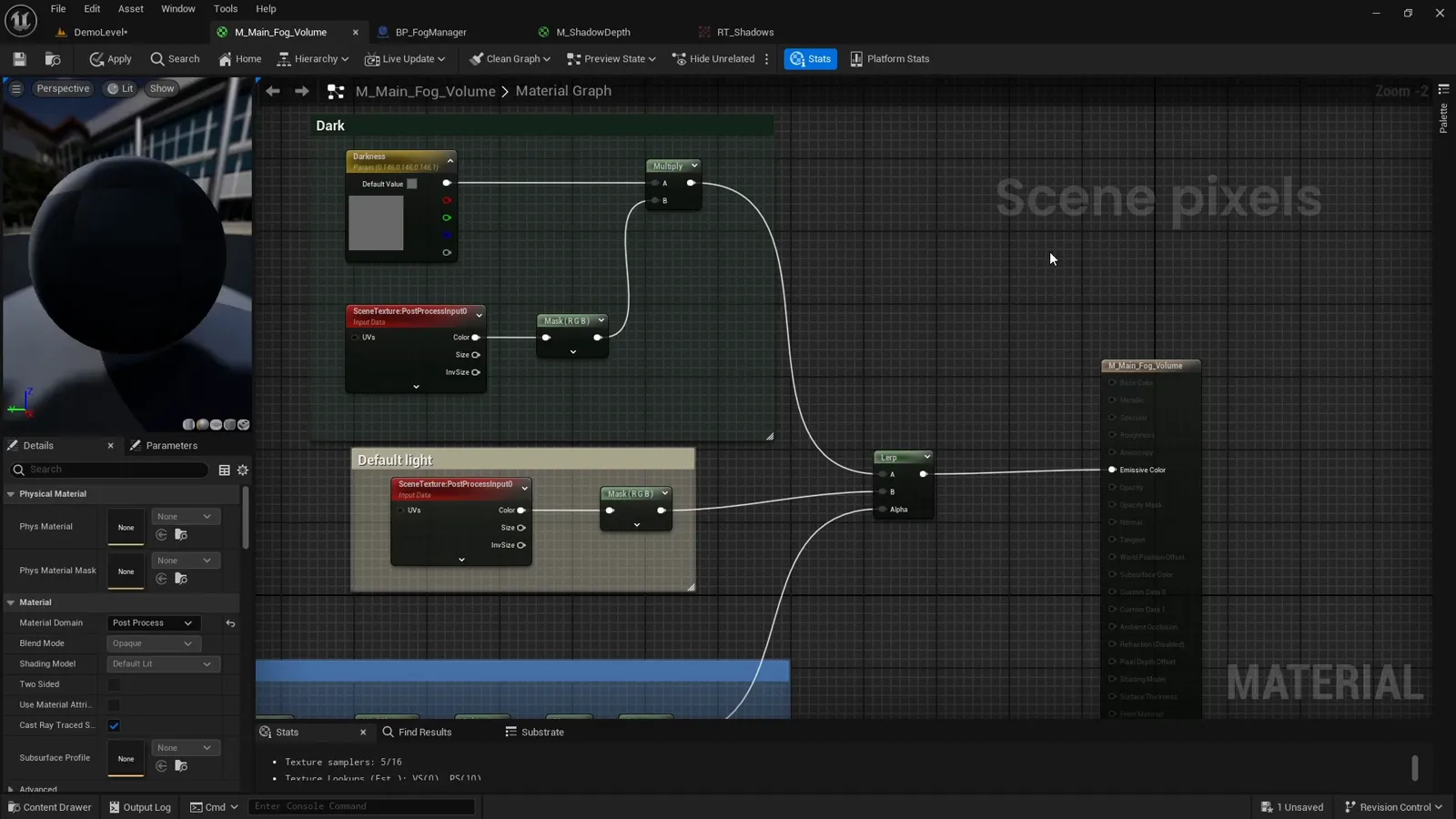

The dark-to-lit lerp

M_Main_Fog_Volume is a post-process material that writes to Emissive Color. At its core it is one lerp between two versions of the scene, chosen by a mask:

// SceneColor = SceneTexture:PostProcessInput0
float3 dark = SceneColor * Darkness;       // Darkness param, e.g. (0.146, 0.146, 0.146)
EmissiveColor = lerp(dark, SceneColor, mask); // mask 1 = fully visible, 0 = fogged

So the only real question is how we build mask: white where the player can currently see, black everywhere else. Everything else in the graph produces that single black-and-white value.

Here is the whole M_Main_Fog_Volume material graph to explore node by node:

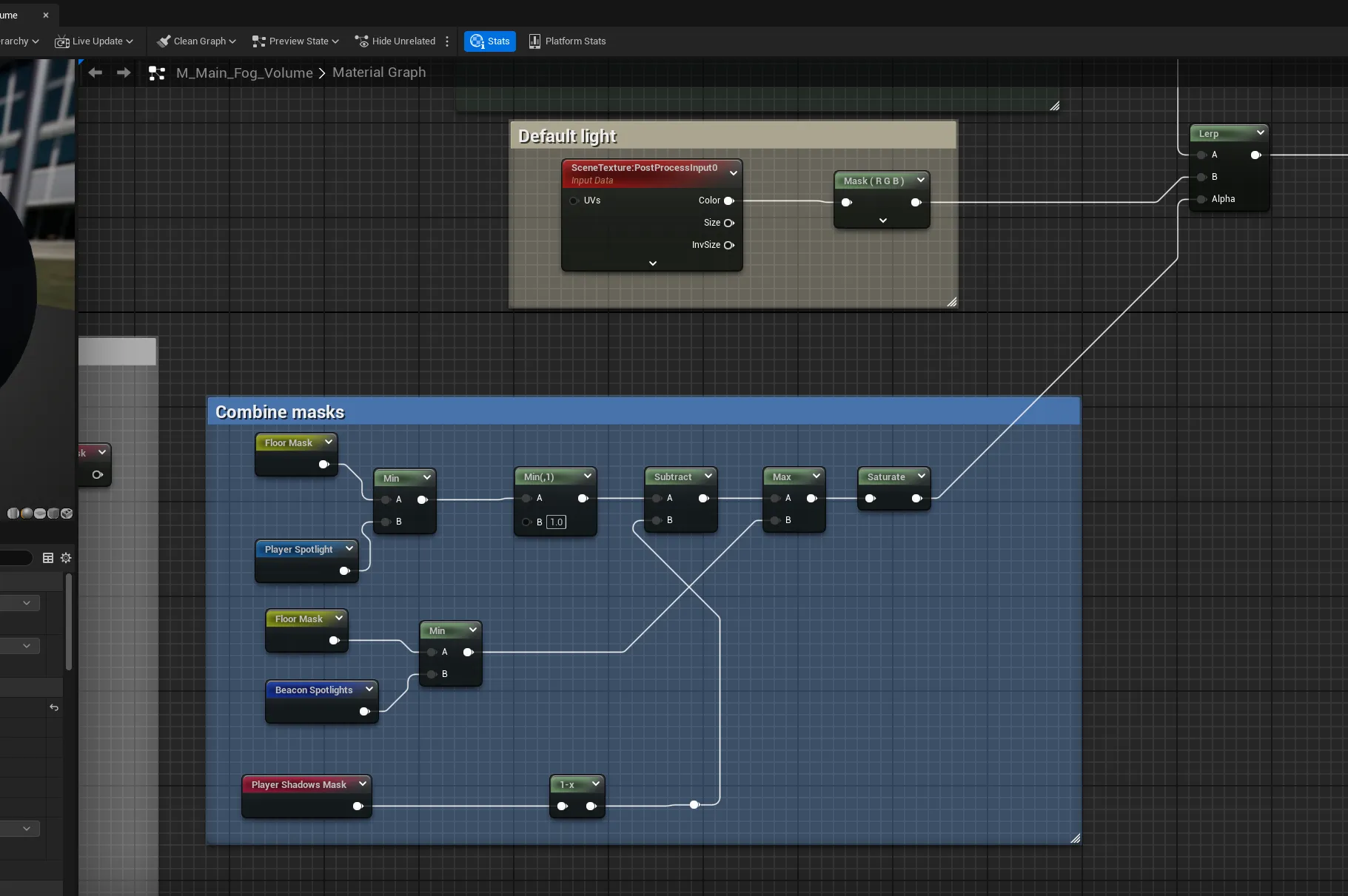

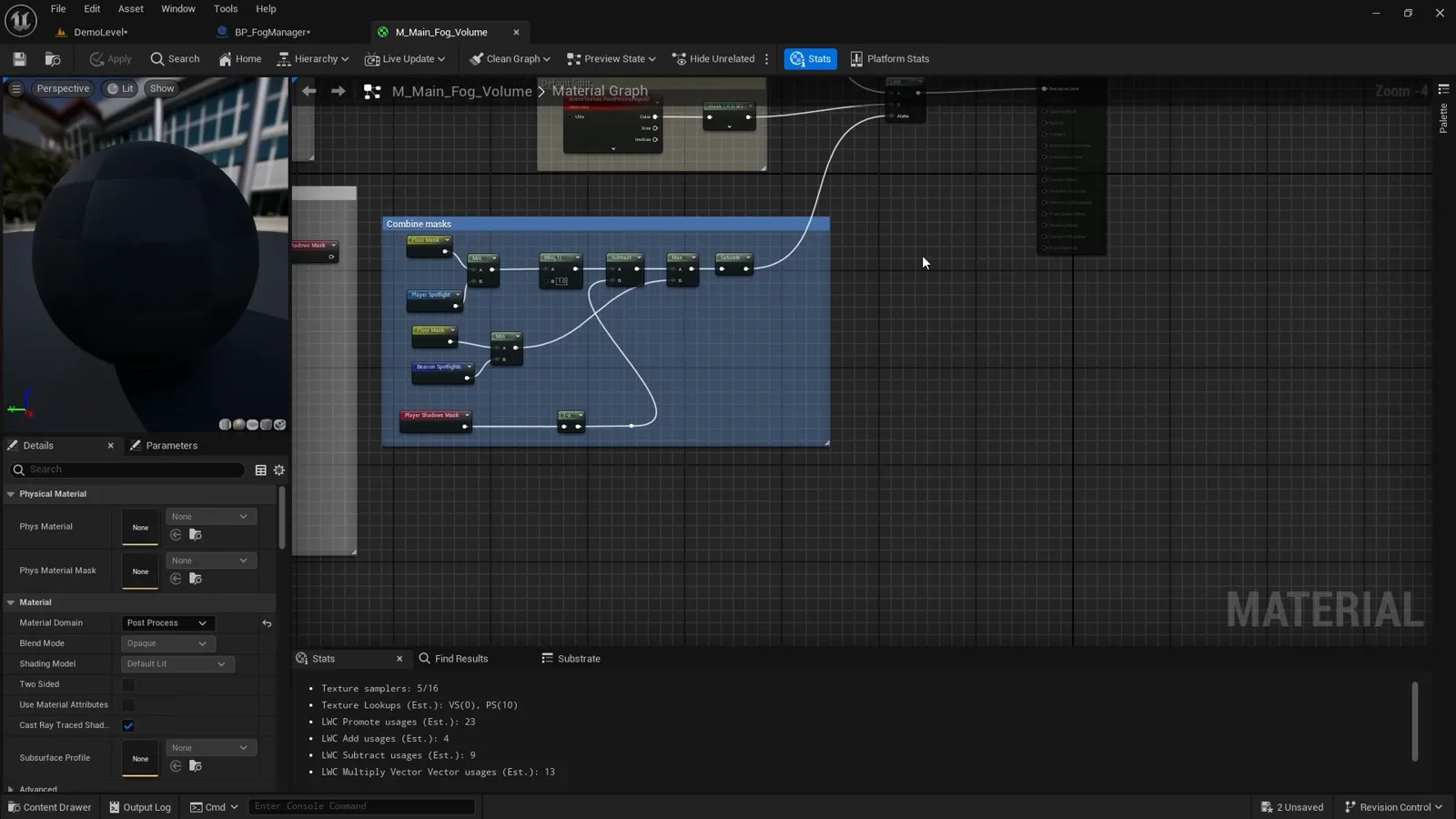

How the masks combine

mask is several black-and-white masks combined, each built in its own step. The combine is just three operations:

float playerReveal = min(floorMask, playerSpotlight);   // AND: lit floor the player sees
float beaconReveal = min(floorMask, beaconSpotlights);  // AND: lit floor a beacon sees
float mask         = saturate(max(playerReveal, beaconReveal) - cliffShadows); // OR, then carve shadows

min is a logical AND (a pixel lights up only where both inputs are white), max is a logical OR (any vision source can reveal a pixel), and the shadow term is subtracted last. The floor mask and player spotlight and the beacon spotlights are built in their own steps; the rest of this one is the shadow term.

The shadow term comes from occluders

A flat spotlight happily shines through walls and cliffs. To stop that, we mark which geometry blocks vision, then use it two ways: keep the occluder’s own face unlit, and cast a shadow behind it. Both start from the same mark.

Marking geometry as a vision occluder

An occluder needs three things set on its mesh:

• Render Custom Depth enabled, with Custom Depth Stencil Value = 1. This is how the material and the shadow capture isolate occluders from everything else.
• Cast Shadow disabled. We are faking vision shadows ourselves, so the mesh should not also throw a normal lighting shadow.
• A VISION_OCCLUDER actor tag, so code can find every occluder at once.

You can set those by hand, but the plugin ships a convenience component, UVisionOccluderComponent. Drop it on any actor and its construction event applies all three. The C++ is just a hook that fires a Blueprint event on register:

void UVisionOccluderComponent::OnRegister()
{
    Super::OnRegister();
    OnVisionOccluderConstruction(); // BlueprintImplementableEvent
}

And the Blueprint, BP_Vision_Occluder, does the actual work on its owner’s static mesh component:

On Vision Occluder Construction:
  Mesh = Owner -> StaticMeshComponent
  Mesh.SetRenderCustomDepth(true)
  Mesh.SetCustomDepthStencilValue(1)
  Mesh.SetCastShadow(false)
  if (!Owner.ActorHasTag("VISION_OCCLUDER")) Owner.Tags.Add("VISION_OCCLUDER")

Project setting: custom stencils do nothing until you turn them on. In Project Settings, set Custom Depth-Stencil Pass to Enabled with Stencil. Without it, every CustomStencil read comes back empty and you will chase an “occluders do nothing” bug that is really a one-checkbox fix.

Keeping the occluder surfaces unlit

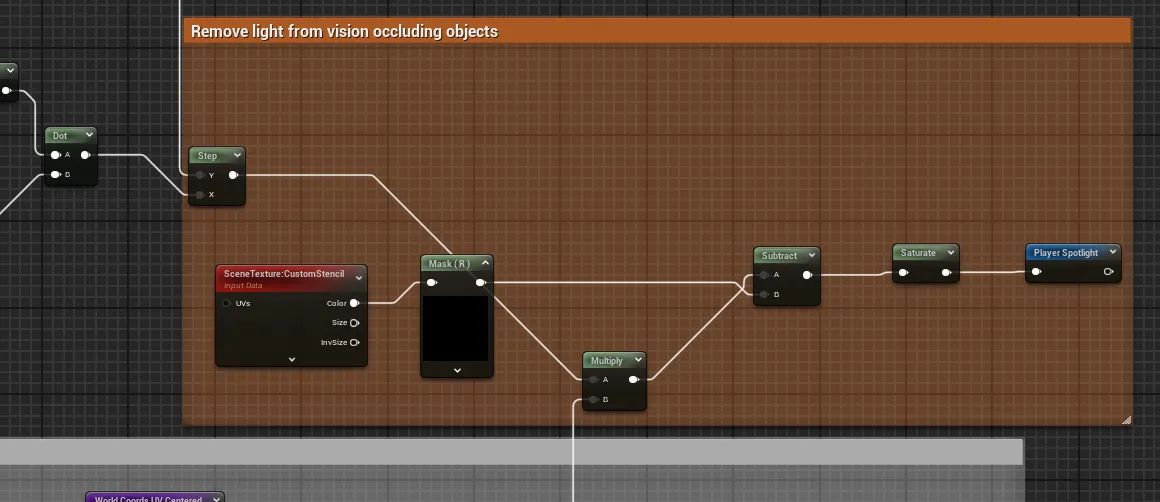

The first, cheap effect lives in the spotlight chain. Read SceneTexture: CustomStencil, mask the occluder value, and subtract it from the sphere-and-cone spotlight before the final saturate:

float sphere   = SphereMask(WorldCoordsUVCentered, HeroLocation, CharacterVisibilityRadius / MapSize, 90);
float inCone   = step(CharacterFOVCosHalfAngle, dot(normalize(WorldCoordsUVCentered - HeroLocation), CharacterForwardDirection.xy));
float occluder = SceneTexture_CustomStencil(uv).r; // 1 on VISION_OCCLUDER pixels
// Occluder term is multiplied by the sphere so light is only removed inside the lit area.
float PlayerSpotlight = saturate(sphere * inCone - occluder * sphere);

This stops the face of a cliff from glowing when the player stands against it, but it does nothing about what is behind the cliff.

Cliff shadows: blocking what is behind an occluder

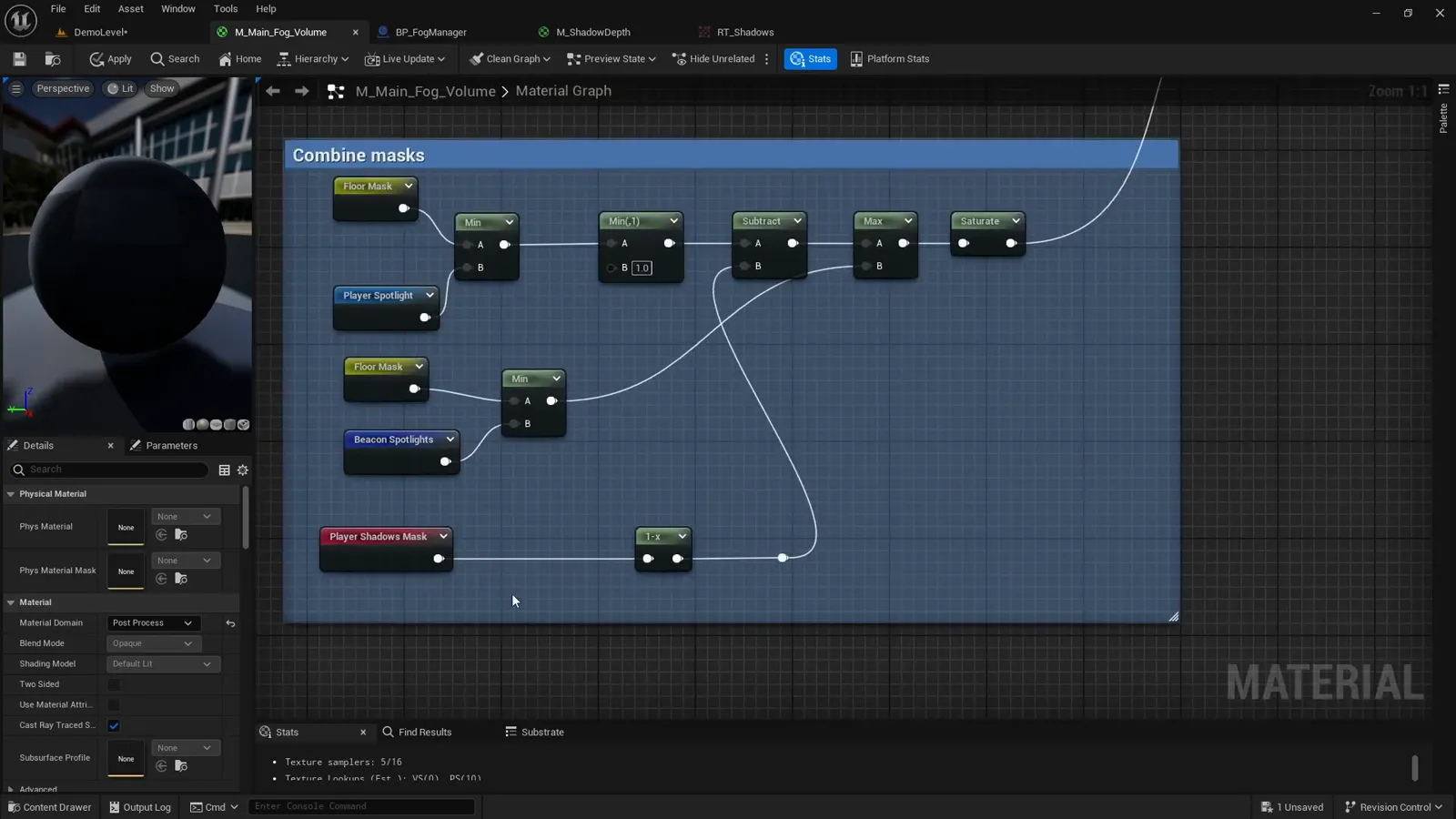

The second effect is the player shadow mask, the only genuinely new layer in the combine. It subtracts darkness back out of the player’s lit area wherever a cliff should block their line of sight.

The first-person shadow scene capture

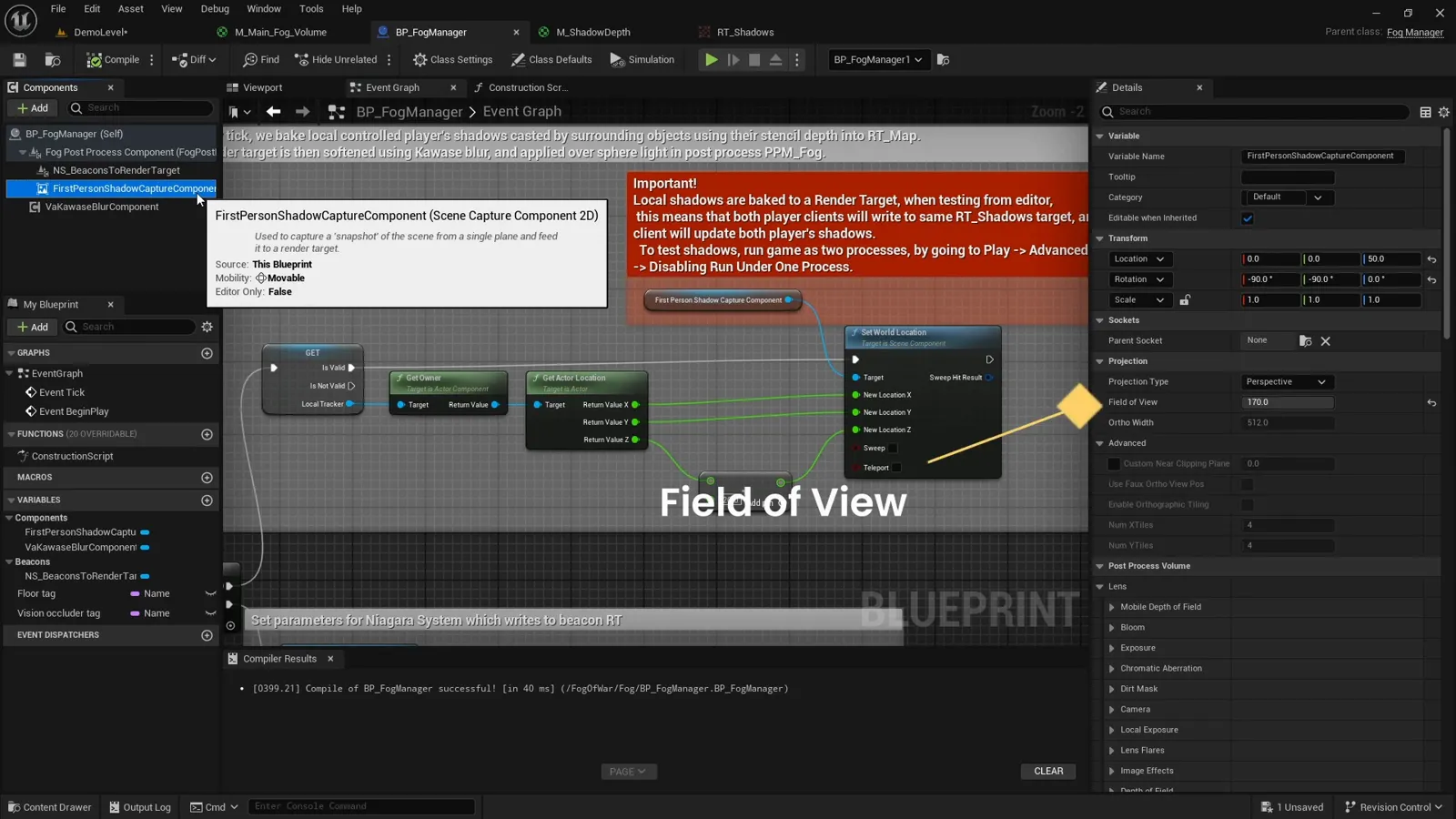

On the Fog Manager there is a USceneCaptureComponent2D called the first-person shadow capture. It points straight down and, every tick, snaps to the locally controlled character so it always captures the area immediately around the player:

ShadowCapture.SetWorldLocation(LocalPawn.GetActorLocation() + (0, 0, 20))

Its field of view is set to 170 degrees: for some reason 180 misbehaves, but 170 is wide enough to capture the surroundings at roughly head height, which is the vantage point we need to work out what the player can and cannot see past.

Capturing only the occluders

We do not want the capture to see the whole busy scene, only the occluders. This is where the VISION_OCCLUDER tag pays off: a C++ helper collects every actor that is not an occluder, and we feed that list to the capture’s HiddenActors so only the tagged cliffs and walls render:

// Everything WITHOUT the occluder tag, so the capture can hide it and keep only occluders.
TArray<AActor*> AFogManager::GetAllNonOccludingActors() const
{
    const FName OccluderTag = "VISION_OCCLUDER";
    TArray<AActor*> NonOccluders;
    for (AActor* Actor : GetWorld()->GetCurrentLevel()->Actors)
        if (Actor && !Actor->ActorHasTag(OccluderTag))
            NonOccluders.Add(Actor);
    return NonOccluders;
}

// On the capture: ShadowCapture->HiddenActors = GetAllNonOccludingActors();

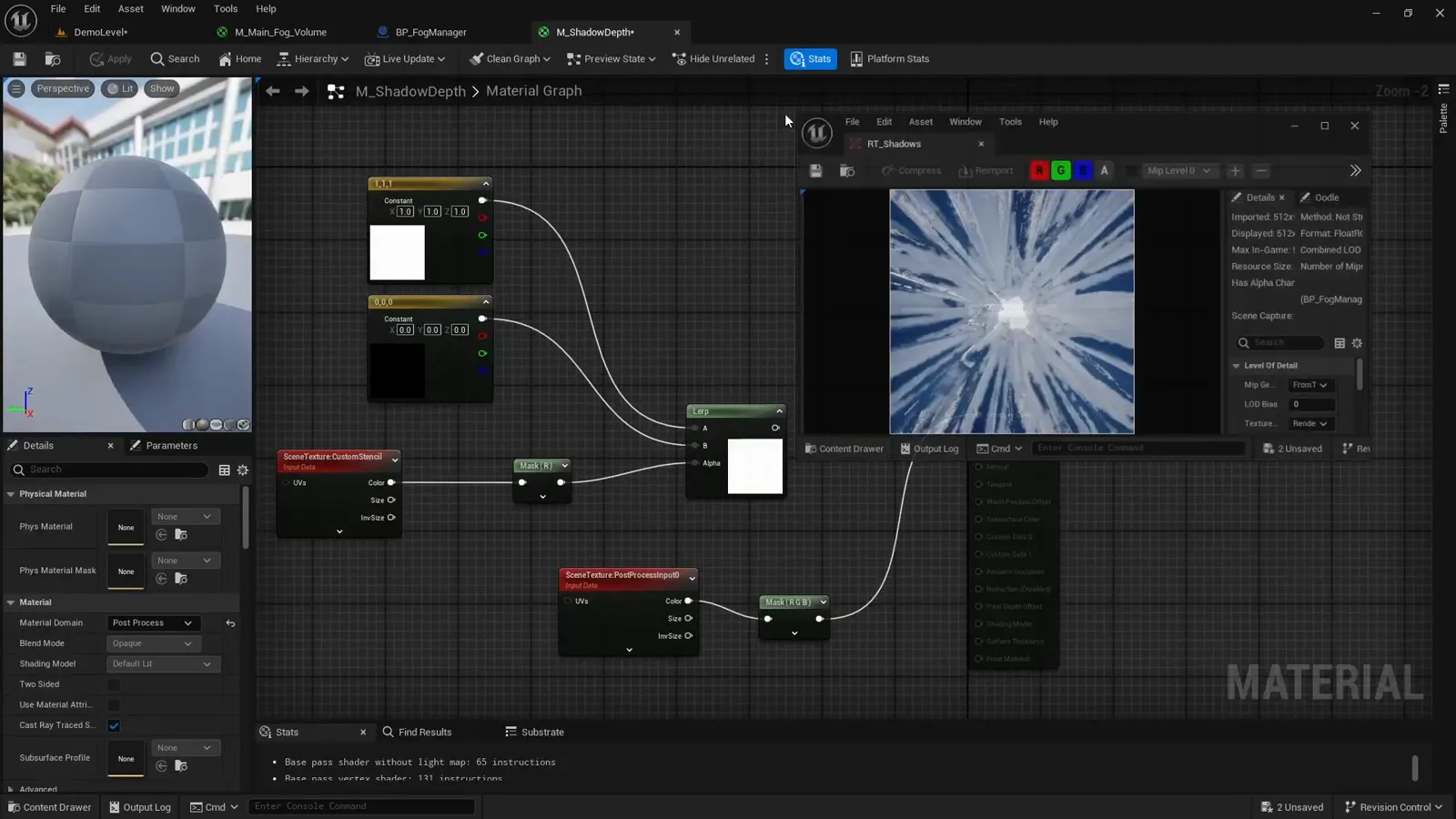

The scene capture writes into a render target. On its own it is a busy top-down capture of the area around the player; it is not yet anything the fog can use.

Converting the capture to a shadow mask

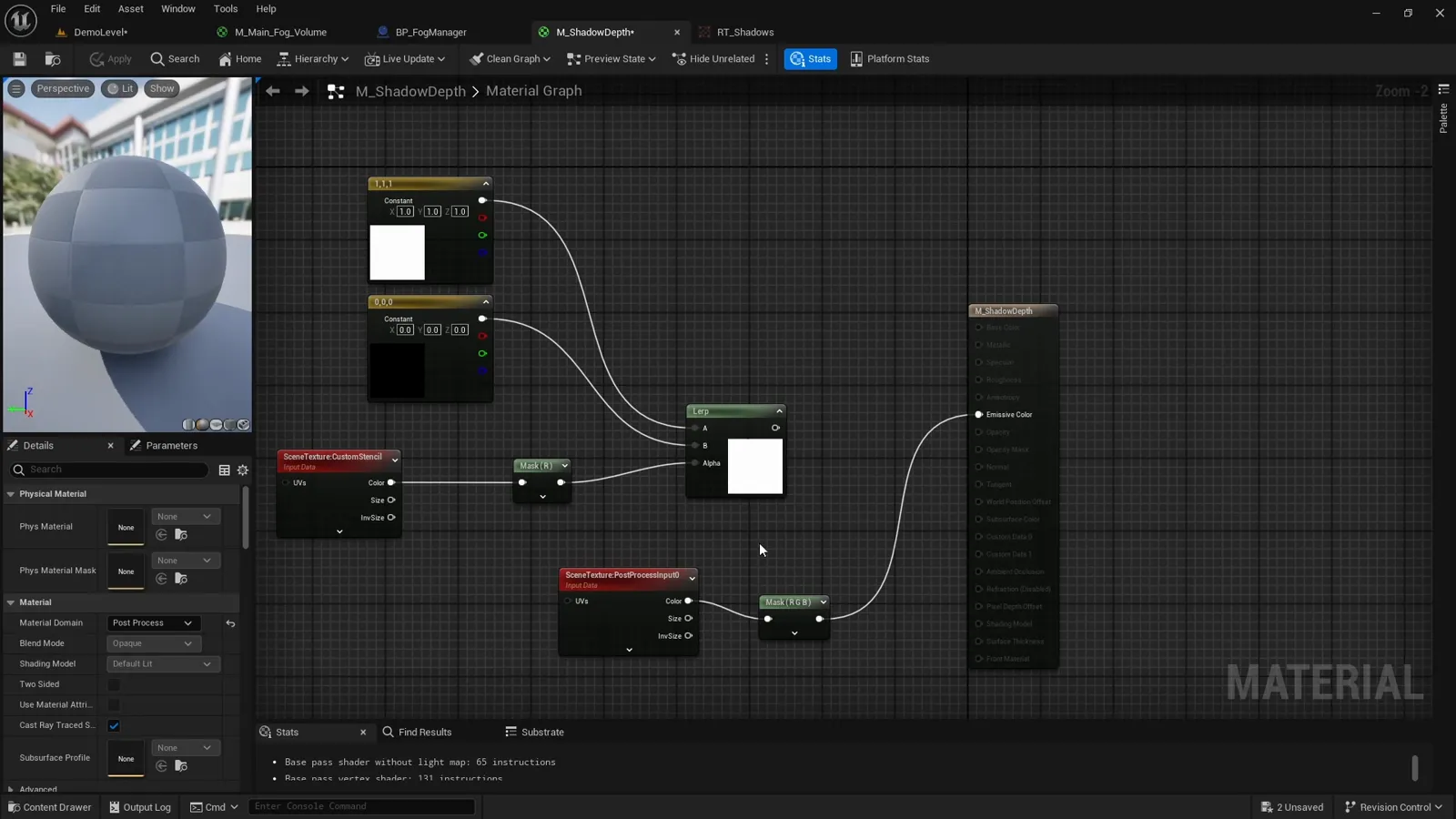

We convert that capture into a clean black-and-white shadow mask with a small post-process material on the capture itself. Reading SceneTexture: CustomStencil, anything with a stencil value of 1 (our occluders) is drawn black; everything else stays white:

float stencil = SceneTexture_CustomStencil(uv).r;
float shadow  = (stencil == 1) ? 0.0 : 1.0; // occluder pixels go black

Because the capture is taken from the player’s position looking down, the occluder silhouettes naturally fall away from the player, which reads as shadows cast outward from the viewer. The result is softened with a Kawase blur so the shadow edges are not hard aliased steps, and stored in the shadow render target (RT_Map).

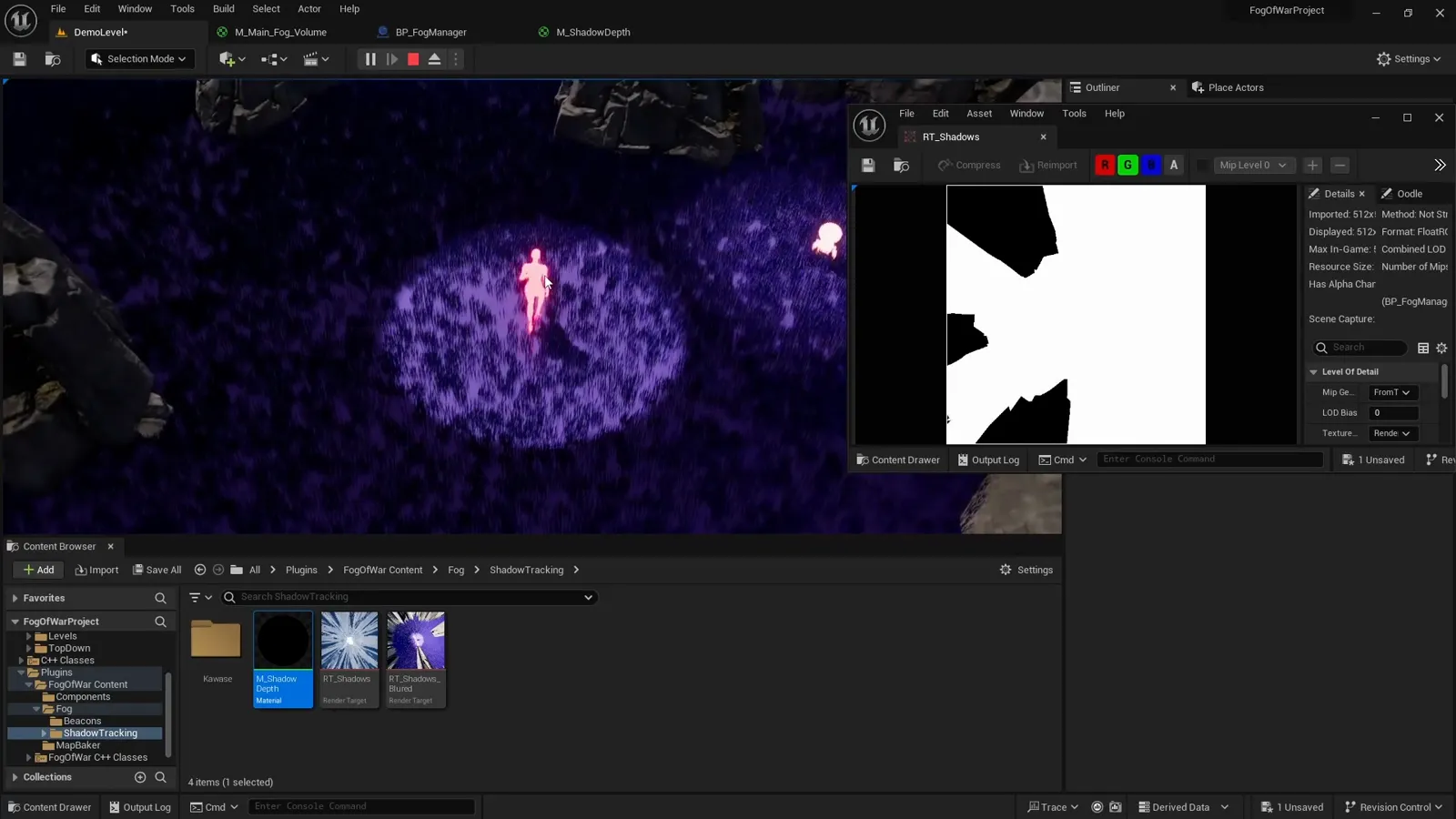

Running the game, instead of a light show we get a clean black-and-white mask where black is the shadow cast by nearby cliffs. It updates live as the character moves.

Testing this in multiplayer: the shadows bake to a single shared render target. In PIE under one process, both clients write to the same RT_Shadows, so one client ends up driving both players’ shadows and it looks broken. To test it properly, run as two processes: Play, then Advanced Settings, then disable Run Under One Process.

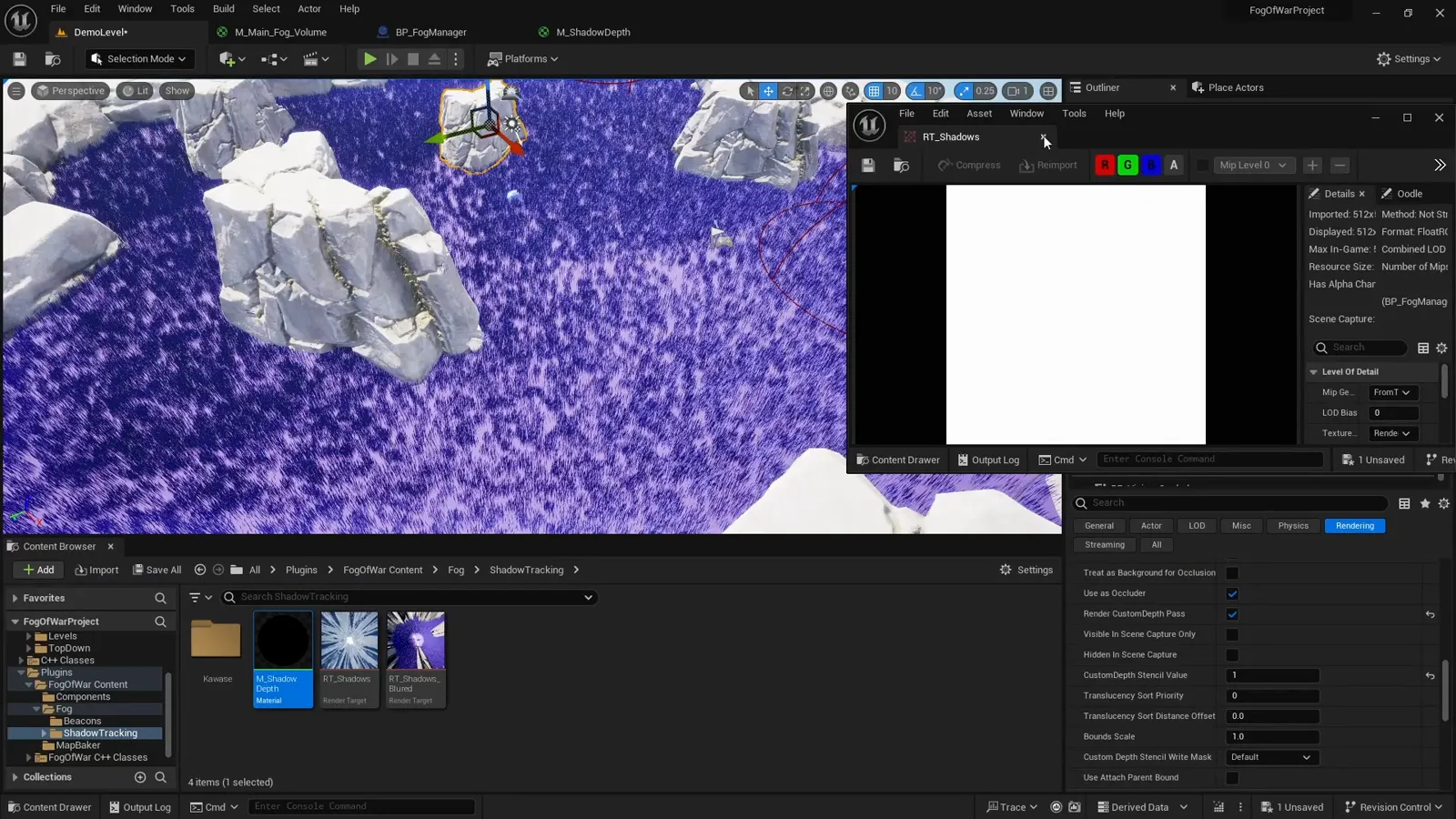

Bringing the shadow mask back into the material

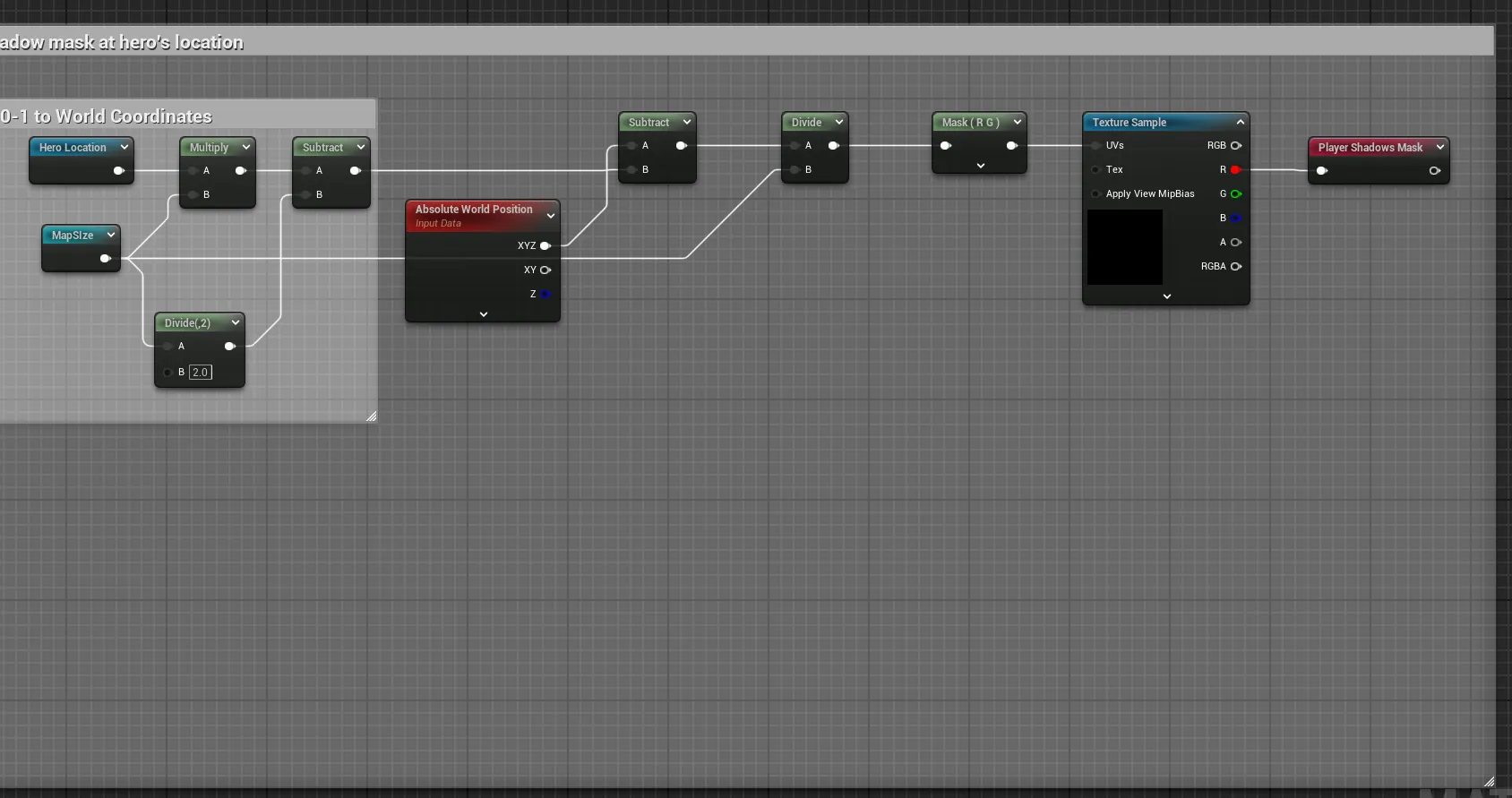

The shadow render target is centered on the player, not on the world, so we cannot reuse the floor’s UV. Instead we take the pixel’s Absolute World Position, subtract the hero’s world position (Hero Location * MapSize), and scale by the capture extent to land in the render target’s 0 to 1 space. That maps each world pixel to the right spot in the player-centered capture, so the shadow lines up with the geometry under the player.

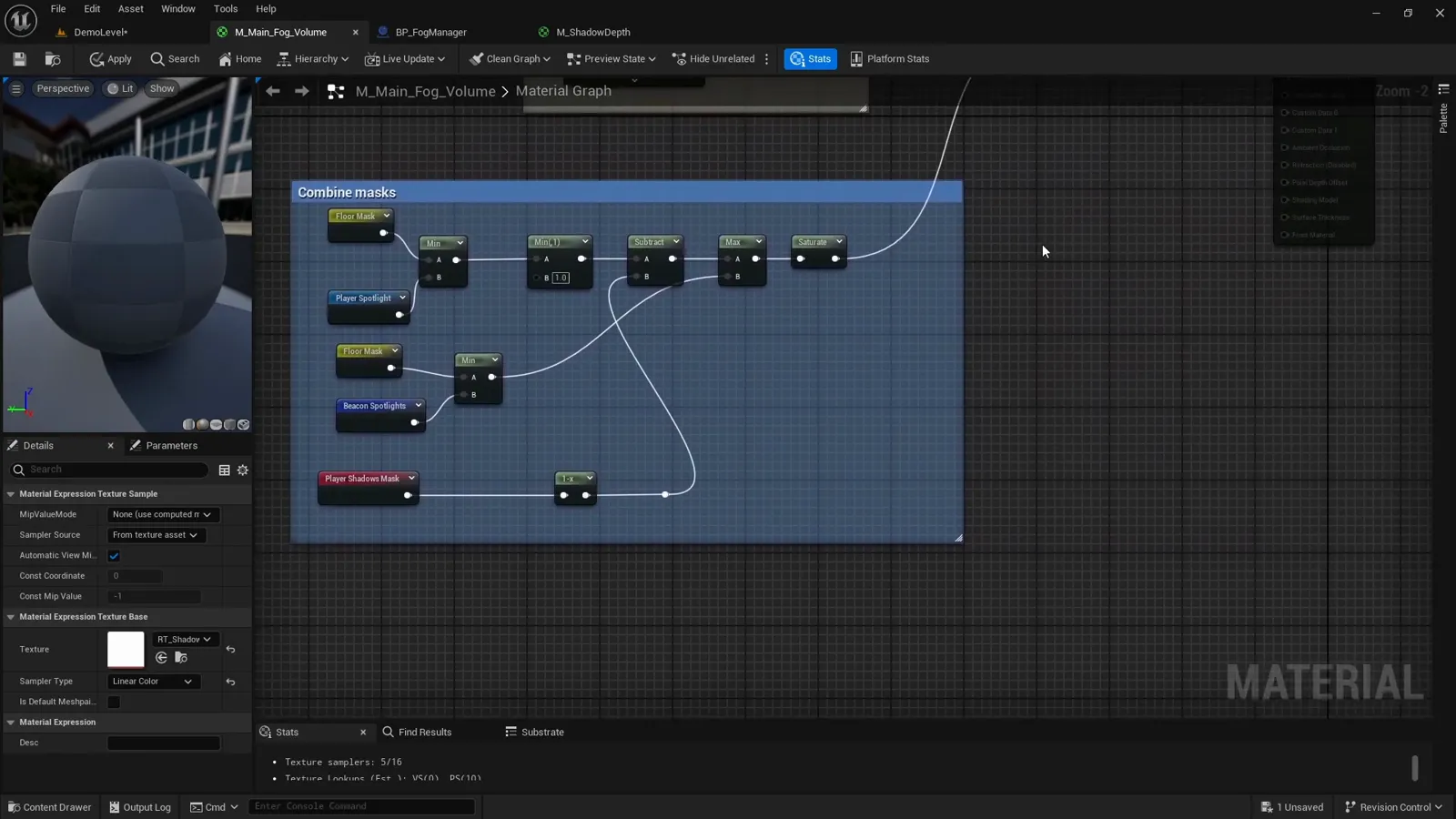

In the combine, we invert the mask so the cliff shadows become white, then subtract them from the player’s reveal. Anywhere a cliff blocks the view, that slice of the lit circle is carved away:

// playerShadowsMask: dark where a cliff casts shadow (from the blurred capture RT)
float shadow = 1 - playerShadowsMask;            // invert: white where sight is blocked
float reveal = max(playerReveal, beaconReveal);  // from the other steps
float mask   = saturate(reveal - shadow);        // carve the shadowed wedge back out

The result

Start the game and the spotlight follows the player, but tall cliffs now throw real shadows across the lit area, so the player can no longer see straight through them. The material darkens, reveals, and carves shadow, all from the one mask.

What’s next

You have the whole material. The remaining steps build the mask inputs it consumes. Next, see how the player’s position becomes the spotlight at the center of it: writing player location to the material.
